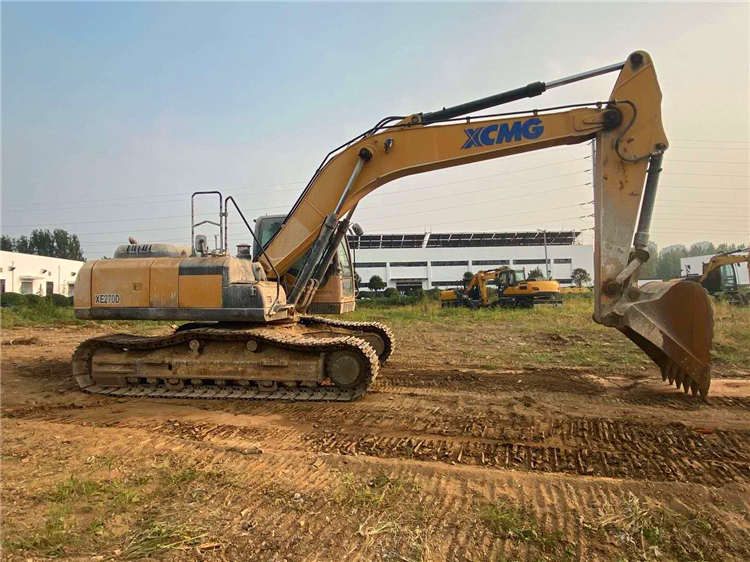

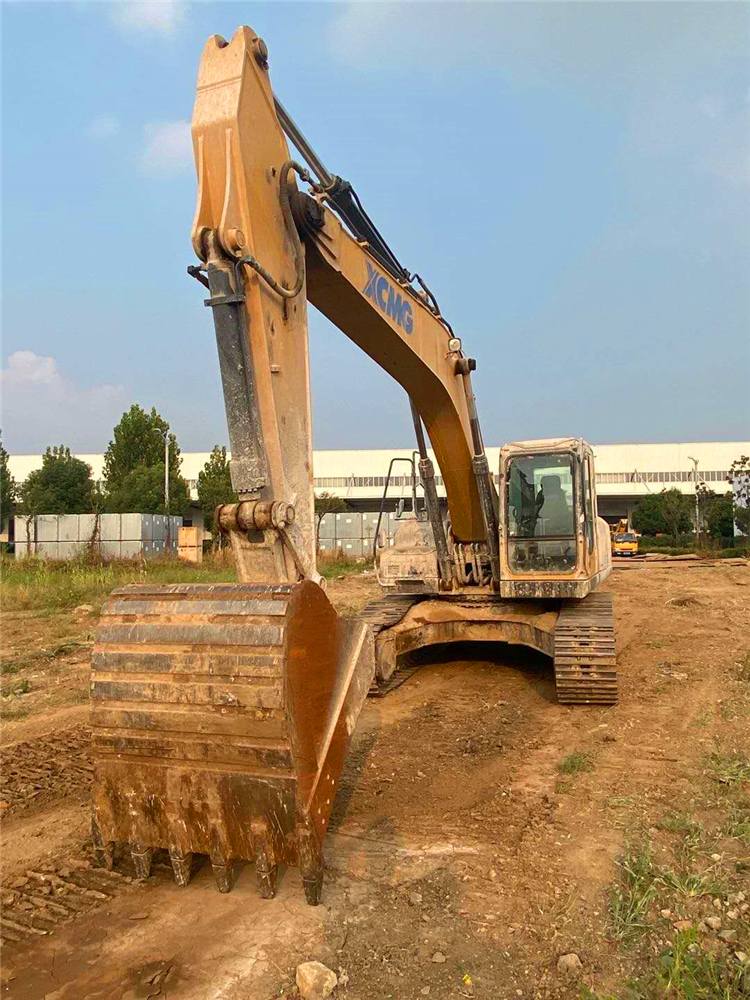

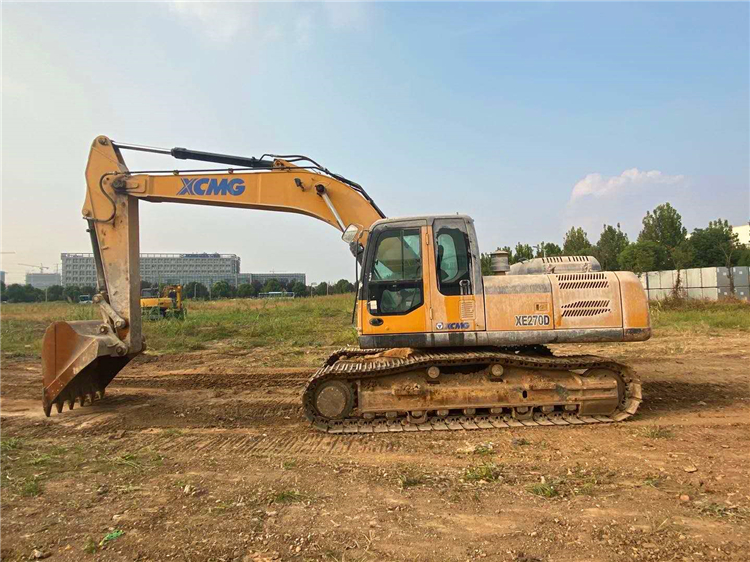

Official 27 Ton Excavator Machine Used XE270DK Used Old Excavator.
XE270DK
hydraulic excavator is a modified product of XCMG\'s DK series, which is
specially designed for heavy-duty operations in small and medium-sized mines
and quarries. Based on "efficient, reliable, intelligent and energy
saving", dig down into product performances. Through the program
optimization, operation speed is paired with adaptive fuel consumption in all
working modes, and fuel consumption will be reduced by 6% without affecting the
efficiency. With reinforced boom and arm, standard 1.3m³ rock bucket, and
optimized bucket shape, the digging resistance will be decreased and the
durability will be doubled.
1.
Ecological and economical
* Cummins engine with low fuel consumption, low emission can provide strong
power.
* High pressure common rail system improve combustion efficiency.
* With optimized engine power curves and low speed large torque output.
2. Multiple applications
* Different boom and bucket combinations maximize utilization of different
conditions.
* Multi-functional machine system meets various job requirements such as
digging and crushing.
3. Comfortable operating experience
* Air Conditioner and Heator and multi-channel stereo air input system ensure
the appropriate temperature.
* Equipped with advanced audio system.
* The cab equipped with hydraulic shock absorbers has multi-directional and
multi-level adjustment functions.

|
Engine |
Engine model |
- |
QSB7 |
|
Rated power |
kw/rpm |
150/2050 |
|
|
Max. torque |
N.m/rpm |
825/1250 |
|
|
No. of cylinders |
- |
6 |
|
|
Displacement |
L |
6.7 |
|
|
|
Walking speed |
km/h |
6.1/3.8 |
|
Rotary speed |
r/min |
11.4 |
|
|
Climbing ability |
° |
35 |
|
|
Ground pressure |
kPa |
52.1 |
|
|
Bucket digging force |
kN |
185 |
|
|
Arm digging force |
kN |
129 |
|
|
Max. traction |
kN |
205 |
|
|
|
Main pump rated flow |
L/min |
259*2 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Rotary system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil capacity |
Fuel tank capacity |
L |
400 |
|
Hydraulic tank volume |
L |
220 |
|
|
Working dimensions |
Max. digging height |
mm |
10095 |
|
Max. digging depth |
mm |
6925 |
|
|
Max. digging radius |
mm |
10240 |
|
|
Min. turning radius |
mm |
3510 |
|
|
Boom length |
mm |
6000 |
|
|
Arm length |
mm |
2964 |
